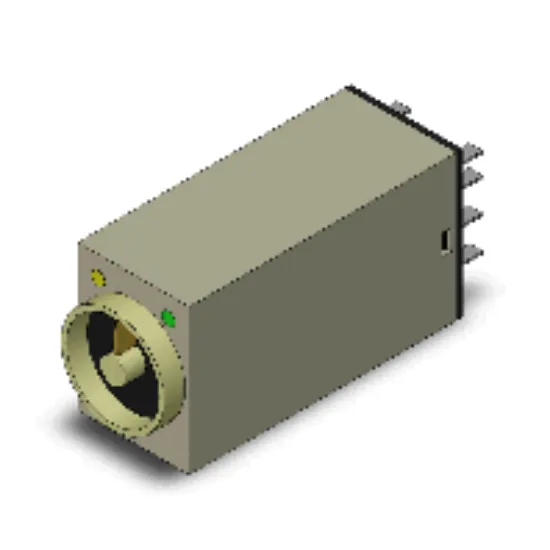

aut.vn Timer Omron H3YN-21 AC100-120

Rated power supply voltage : 100 to 120 VAC 50/60 Hz
Control output (Type) : Time-limit: DPDT
Connecting method : 8-pin round socket
Rated power supply voltage : 100 to 120 VAC 50/60 Hz
Allowable voltage variable range : 85 to 110% of the power supply voltage
Power consumption : Relay ON: Approx. 1.8 VA (at 120 VAC 60 Hz)/Relay OFF: Approx. 1 VA (at 120 VAC 60 Hz)
Relay ON: Approx. 1.6 W (at 120 VAC 60 Hz)/Relay OFF: Approx. 0.6 W (at 120 VAC 60 Hz)
Reset voltage : 10% max. of rated supply voltage
Number of time ranges : 4
Operation mode : ON delay, Interval, Flicker OFF start, Flicker ON start
Control output (Type) : Time-limit: DPDT
Control output (Contact output) : Resistive load: 250 VAC 5 A (cosφ=1)
Minimum applicable load: 1 mA at 5 VDC (failure level: P)
Ambient temperature range : Operating: -10 to 50 ℃ (with no icing)
Storage: -25 to 65 ℃ (with no icing)
Ambient humidity range : Operating: 35 to 85 %
Accuracy of operating time : ±1% FS max.
Setting error : ±10% FS ±50 ms max.
Reset time : 0.1 s max. (including halfway reset)
Influence of voltage : ±2% FS max.
Influence of temperature : ±2% FS max.
Insulation resistance : 100 MΩ min. (at 500 VDC)
Dielectric strength : Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min (Terminal screw sections are not excluded)
Between operating power circuit and control output: 2,000 VAC 50/60 Hz 1 min
Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min
Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min
Impulse withstand voltage : Between power terminals: 3 kV
Between current carrying terminals and exposed non-current carrying metal parts: 4.5 kV
Noise immunity : ±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise)
Static immunity : Mulfunction: 4 kV, Destruction: 8 kV
Vibration resistance : Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour
Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min
Shock resistance : Destruction: 1,000 m/s2, 3 times each in 6 directions
Malfunction: 100 m/s2, 3 times each in 6 directions
Life expectancy (relay output) : Electrical: 500,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h, Room temperature)
Mechanical: 10 million operations min. (under no load at 1,800 operations/h)
Degree of protection : IP40
Connecting method : 8-pin round socket
Case color : Beige
Weight : Approx. 50 g
Applicable socket : PYFZ-08/ PYFZ-08-E/ PYF08M/ PY08/ PY08-02
