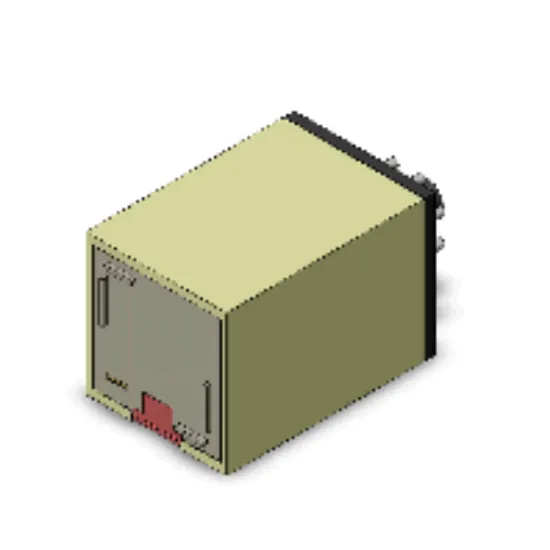

aut.vn Rơ le trung gian Omron MKS2PI-2 AC12

Coil ratings : 12 VAC 50 Hz 221 mA
12 VAC 60 Hz 193 mA
Operating indicator : Mechanical indicator
Contact form : DPDT
Contact method : Single
Contact material : AgSnIn
Contact rated load : 250 VAC 10 A (NO contact: Resistive load)
250 VAC 5 A (NC contact: Resistive load)
250 VAC 7 A (Inductive load (cosφ = 0.4))
30 VDC 10 A (NO contact: Resistive load)
30 VDC 5 A (NC contact: Resistive load)
Terminal structure : Plug-in terminal
Operating indicator : Mechanical indicator
Degree of protection : Closed type (cover)
Terminal structure : Plug-in terminal
Coil : Coil ratings : 12 VAC 50 Hz 221 mA
12 VAC 60 Hz 193 mA
Coil resistance : 13.7 Ω
Operate voltage (Set voltage) : 80 % max.
Release voltage (Reset voltage) : 25 % min. (50 Hz)
30 % min. (60 Hz)
Maximum voltage : 110 %
Power consumption : Approx. 2.7 VA 50 Hz/Approx. 2.3 VA 60 Hz
Contact : Contact rated load : 250 VAC 10 A (NO contact: Resistive load)
250 VAC 5 A (NC contact: Resistive load)
250 VAC 7 A (Inductive load (cosφ = 0.4))
30 VDC 10 A (NO contact: Resistive load)
30 VDC 5 A (NC contact: Resistive load)
Max. contact voltage : 250 VAC
250 VDC
Max. contact current : AC: 10 A
DC: 10 A
Maximum switching power : 2500 VA (NO contact: Resistive load)
1250 VA (NC contact: Resistive load)
1750 VAAC (Inductive load (cosφ = 0.4))
300 W (NO contact: Resistive load)
150 W (NC contact: Resistive load)
Contact form : DPDT
Contact method : Single
Contact material : AgSnIn
Contact resistance : 100 mΩ max. (Voltage drop method with 5 VDC 1 A)
Operating time : 20 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Reset time : 20 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Maximum operating frequency : Mechanical: 18000 time/hour
Rated load: 1800 time/hour
Insulation resistance : Between coil and contacts: 100 MΩ min. (at 500 VDC)
Between contacts of different polarity: 100 MΩ min. (at 500 VDC)
Between contacts of same polarity: 100 MΩ min. (at 500 VDC)
Dielectric strength : Between coil and contacts: 2500 VAC 50/60 Hz 1 min
Between contacts of different polarity: 2500 VAC 50/60 Hz 1 min
Between contacts of same polarity: 1000 VAC 50/60 Hz 1 min
Vibration resistance (destruction) : 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Vibration resistance (Malfunction) : 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
Shock resistance (destruction) : 1000 m/s2
Shock resistance (Malfunction) : 100 m/s2
Endurance (Mechanical) : 5,000,000 operations min. (switching frequency 1,800 operations/h)
Endurance (Electrical) : 100,000 operations min. (23 ℃, Rated load, switching frequency 1,800 operations/h)
Failure rate : 1 VDC 10 mA (failure level: Preference value, Switching frequency: 30 operations per minute)
Ambient temperature (Operating) : -40 to 60 ℃
Ambient humidity (Operating) : 5 to 85 %
Weight : Approx. 90 g
Mounting method : Socket
Applicable socket : PF083A-E/ PF083A
