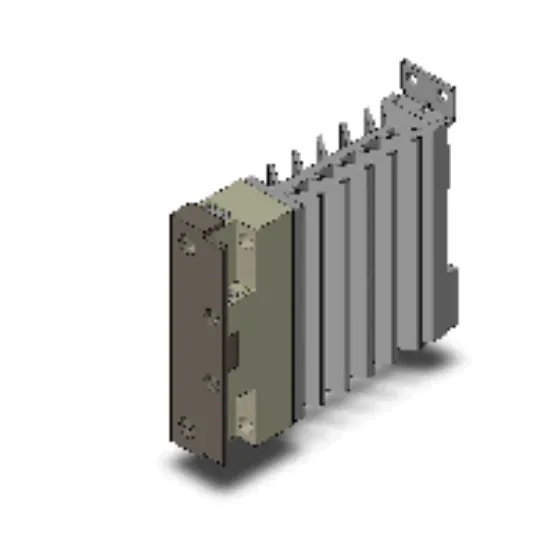

aut.vn Relay bán dẫn Omron G3PE-525B DC12-24

Product classification : For single-phase heater
Zero cross function : Equipped
Operating indicator : Equipped (Yellow)
Rated voltage : 12 to 24 VDC
Rated load voltage : 200 to 480 VAC (50/60 Hz)
Load current : 0.1 to 25 A (at 40 ℃)
Terminal structure : Screw terminal
Product classification : For single-phase heater
Number of phases : Single-phase
Isolation method : Phototriac
Zero cross function : Equipped
Operating indicator : Equipped (Yellow)
Terminal structure : Screw terminal
Mounting : DIN track mounting, Screw mounting
Input : Rated voltage : 12 to 24 VDC
Operating voltage range : 9.6 to 30 VDC
Input current : 7 mA max.
Operate voltage : 9.6 V max.DC
Release voltage : 1 V min.DC
Output : Rated load voltage : 200 to 480 VAC (50/60 Hz)
Load voltage range : 180 to 528 VAC 50/60 Hz
Load current : 0.1 to 25 A (at 40 ℃)
Inrush current resistivity : 220 A (60 Hz 1 cycle)
Permissible I2**t : 1350 A2s
Applicable load : Load carrying capacity : Resistive load: 10 kW (at 400 VAC)
Operate time : 1/2 cycle of load power source + 1 ms max.
Release time : 1/2 cycle of load power source + 1 ms max.
Output ON voltage drop : 1.8 V max. (RMS)
Leakage current : 20 mA max. (at 480 VAC)
Insulation resistance : 100 MΩ min. (at 500 VDC)
Dielectric strength : 2500 VAC 50/60 Hz 1 min
Vibration resistance : 10 to 55 to 10 Hz, 0.375 mm single amplitude (0.75 mm double amplitude) (mounted on DIN track)
Shock resistance : 294 m/s2 (DIN Track mounting)
Ambient temperature (Operating) : -30 to 80 ℃ (with no freezing or condensation)
Ambient temperature (Storage) : -30 to 100 ℃ (with no freezing or condensation)
Ambient humidity (Operating) : 45 to 85 %
Weight : Approx. 240 g
