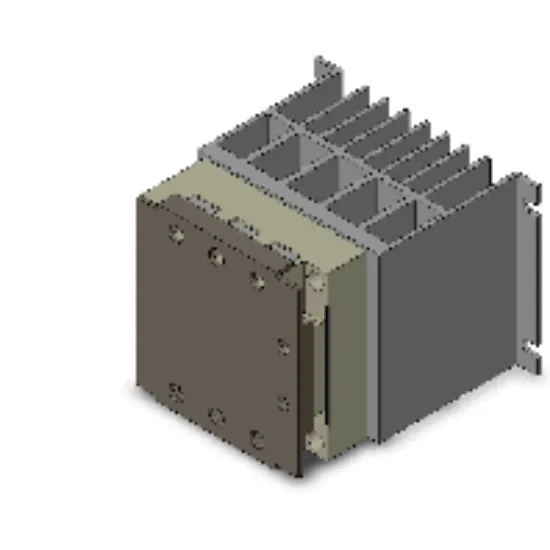

aut.vn Relay bán dẫn Omron G3PE-515B-3 DC12-24

Product classification : For 3-phase Heater
Zero cross function : Equipped
Operating indicator : Equipped (Yellow)
Rated voltage : 12 to 24 VDC
Rated load voltage : 200 to 480 VAC
Load current : 15 A (at 40 ℃)
Terminal structure : Screw terminal
Product classification : For 3-phase Heater
Number of phases : Three-phase
Number of elements : 3
Isolation method : Phototriac
Zero cross function : Equipped
Operating indicator : Equipped (Yellow)
Terminal structure : Screw terminal
Mounting : Screw mounting
Input : Rated voltage : 12 to 24 VDC
Operating voltage range : 9.6 to 30 VDC
Input current : 10 mA max. (at 24 VDC)
Operate voltage : 9.6 V max.DC
Release voltage : 1 V min.DC
Output : Rated load voltage : 200 to 480 VAC
Load voltage range : 180 to 528 VAC
Minimum load current : 0.5 A
Load current : 15 A (at 40 ℃)
Inrush current resistivity : 220 A (60 Hz 1 cycle)
Permissible I2**t : 260 A2s
Applicable load : Load carrying capacity : 12.5 kW (at 480 VAC)
Operate time : 1/2 cycle of load power source + 1 ms max.
Release time : 1/2 cycle of load power source + 1 ms max.
Output ON voltage drop : 1.8 V max. (RMS)
Leakage current : 20 mA max. (at 480 VAC)
Insulation resistance : 100 MΩ min. (at 500 VDC)
Dielectric strength : 2500 VAC 50/60 Hz 1 min
Vibration resistance : 10 to 55 to 10 Hz, 0.375 mm single amplitude (0.75 mm double amplitude)
Shock resistance : 294 m/s2 (98 m/s2 with reverse mounting)
Ambient temperature (Operating) : -30 to 80 ℃ (with no freezing or condensation)
Ambient temperature (Storage) : -30 to 100 ℃ (with no freezing or condensation)
Ambient humidity (Operating) : 45 to 85 %
Weight : Approx. 1250 g
