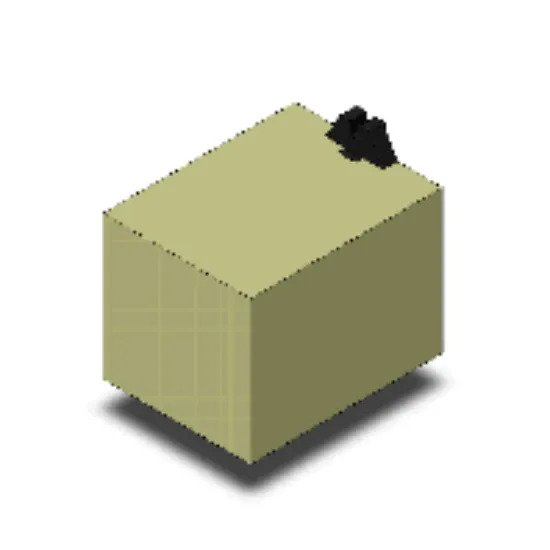

aut.vn Relay an toàn Omron MM3XP AC200/(220)

Coil ratings : 200 VAC 50 Hz 29 mA
200 VAC 60 Hz 25.5 mA
220 VAC 60 Hz 29 mA
Contact form : 3PDT
Contact method : Single
Contact material : Ag
Contact rated load : 110 VDC 7 A (Resistive load)
110 VDC 6 A (Inductive load (L/R = 7 ms))
Terminal structure : Plug-in terminal
Degree of protection : Closed type (cover)
Terminal structure : Plug-in terminal
Coil : Coil ratings : 200 VAC 50 Hz 29 mA
200 VAC 60 Hz 25.5 mA
220 VAC 60 Hz 29 mA
Coil resistance : 620 Ω
Operate voltage (Set voltage) : 80 % max.
Release voltage (Reset voltage) : 25 % min. (50 Hz)
30 % min. (60 Hz)
Maximum voltage : 110 %
Power consumption : Approx. 6.3 VA Initial/Approx. 5.1 VA Rating
Contact : Contact rated load : 110 VDC 7 A (Resistive load)
110 VDC 6 A (Inductive load (L/R = 7 ms))
Max. contact voltage : 250 VAC
250 VDC
Max. contact current : AC: 7.5 A
DC: 7.5 A
Maximum switching power : 20 VA
800 W (Resistive load)
660 W (Inductive load (L/R = 7 ms))
Contact form : 3PDT
Contact method : Single
Contact material : Ag
Contact resistance : 50 mΩ max. (Voltage drop method with 5 VDC 1 A)
Operating time : 25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Reset time : 30 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Maximum operating frequency : Mechanical: 7200 time/hour
Rated load: 1800 time/hour
Insulation resistance : Between coil and contacts: 100 MΩ min. (at 500 VDC)
Between contacts of different polarity: 100 MΩ min. (at 500 VDC)
Between contacts of same polarity: 100 MΩ min. (at 500 VDC)
Dielectric strength : Between coil and contacts: 2000 VAC 50/60 Hz 1 min
Between contacts of different polarity: 2000 VAC 50/60 Hz 1 min
Between contacts of same polarity: 1500 VAC 50/60 Hz 1 min
Vibration resistance (destruction) : 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Vibration resistance (Malfunction) : 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
Shock resistance (destruction) : 1000 m/s2
Shock resistance (Malfunction) : 100 m/s2
Endurance (Mechanical) : 5,000,000 operations min. (switching frequency 7,200 operations/h)
Endurance (Electrical) : 500,000 operations min. (23 ℃, Rated load, switching frequency 1,800 operations/h)
Failure rate : 5 VDC 10 mA (failure level: Preference value, Switching frequency: 60 operations per minute)
Ambient temperature (Operating) : -10 to 55 ℃ (with no freezing or condensation)
Ambient humidity (Operating) : 5 to 85 %
Weight : Approx. 395 g
Mounting method : Socket
Applicable socket : 14PFA/ PL15
