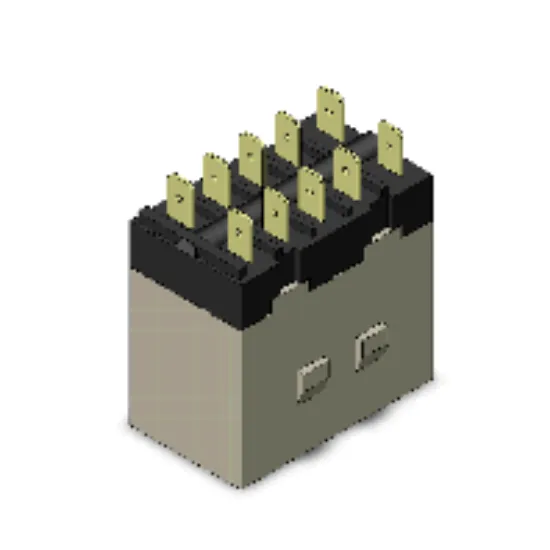

aut.vn Relay an toàn Omron G7J-4A-T AC200/240

Coil ratings : 200 VAC 9 to 10.8 mA
Contact form : 4PST-NO
Contact method : Double break
Contact material : Ag alloy
Contact rated load : 220 VAC 25 A (NO contact: Resistive load)
220 VAC 25 A (NO contact: Inductive load (cosφ = 0.4))
30 VDC 25 A (NO contact: Resistive load)
Terminal structure : Tab terminal
Degree of protection : Closed type (cover)
Terminal structure : Tab terminal
Coil : Coil ratings : 200 VAC 9 to 10.8 mA
Operate voltage (Set voltage) : 75 % max.
Release voltage (Reset voltage) : 15 % min.
Maximum voltage : 110 %
Power consumption : Approx. 1.8 to 2.6 VA
Contact : Contact rated load : 220 VAC 25 A (NO contact: Resistive load)
220 VAC 25 A (NO contact: Inductive load (cosφ = 0.4))
30 VDC 25 A (NO contact: Resistive load)
Max. contact voltage : 250 VAC
125 VDC
Max. contact current : AC: 25 A (NO contact)
DC: 25 A (NO contact)
Maximum switching power : 5500 VA (NO contact: Resistive load)
5500 VA (NO contact: Inductive load (cosφ = 0.4))
750 W (NO contact: Resistive load)
Contact form : 4PST-NO
Contact method : Double break
Contact material : Ag alloy
Contact resistance : 100 mΩ max. (Voltage drop method with 5 VDC 1 A)
Operating time : 50 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Reset time : 50 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Maximum operating frequency : Mechanical: 1800 time/hour
Rated load: 1800 time/hour
Insulation resistance : Between coil and contacts: 1000 MΩ min. (at 500 VDC)
Between contacts of different polarity: 1000 MΩ min. (at 500 VDC)
Between contacts of same polarity: 1000 MΩ min. (at 500 VDC)
Dielectric strength : Between coil and contacts: 4000 VAC 50/60 Hz 1 min
Between contacts of different polarity: 4000 VAC 50/60 Hz 1 min
Between contacts of same polarity: 2000 VAC 50/60 Hz 1 min
Vibration resistance (destruction) : 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Vibration resistance (Malfunction) : 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Shock resistance (destruction) : 1000 m/s2
Shock resistance (Malfunction) : 100 m/s2
Endurance (Mechanical) : 1,000,000 operations min. (switching frequency 1,800 operations/h)
Endurance (Electrical) : 100,000 operations min. (23 ℃, switching frequency 1,800 operations/h)
Failure rate : 24 VDC 100 mA (failure level: Preference value, Switching frequency: 60 operations per minute)
Ambient temperature (Operating) : -25 to 60 ℃ (with no freezing or condensation)
Ambient humidity (Operating) : 5 to 85 %
Weight : Approx. 140 g
Mounting method : W-bracket mounting
