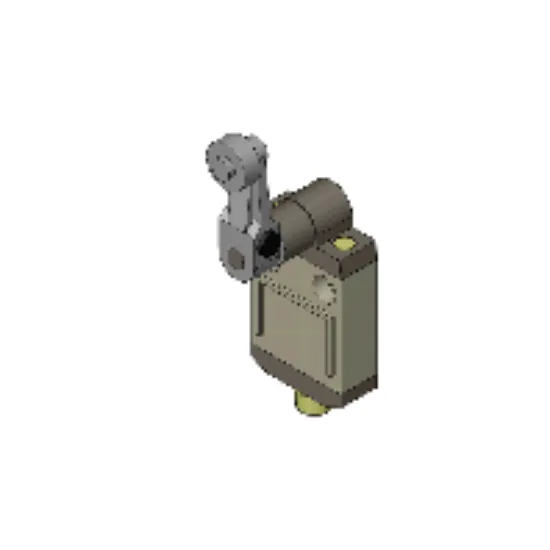

aut.vn Công tắc hành trình Limit Switch Omron D4CC-3024

Shape/Structure : General-purpose Limit switches
Actuator : Roller lever
Electrical ratings : 1 A at 30 VDC
Contact form : SPDT
Degree of protection : IP67
Shape/Structure : General-purpose Limit switches
ctuator : Roller lever 17.5 dia. x 7
Sintered stainless steel roller
Electrical ratings : 1 A at 30 VDC
Contact form : SPDT
Load : General load
Ratings (DC): Non-Inductive load : Resistive load: 1 A at 30 VDC
Lamp load: 1 A at 30 VDC
Inductive load: 1 A at 30 VDC
Motor load: 1 A at 30 VDC
Inrush current : NC: 5 A max.
NO: 2.5 A max.
Ambient temperature : Operating: -10 to 70 ℃ (with no icing)
Ambient humidity : 35 to 95 %
Permissible operating speed : 1 mm/s to 1 m/s
Permissible operating frequency : Electrical: 30 operations / 1 minute max.
Mechanical: 120 operations / 1 minute max.
Contact resistance (Initial value) : 100 mΩ max.
Insulation resistance : 100 MΩ min. (at 500 VDC)
Dielectric strength : Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 min
Between live-metallic part and ground: 1,500 VAC 50/60 Hz 1 min
Between each terminal and non-live-metallic part: 1,500 VAC 50/60 Hz 1 min
Durability : Electrical: 200,000 operations min. (1 A at 125 VAC)
Mechanical: 10 million operations min.
Vibration resistance : Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Shock resistance : Destruction: 1,000 m/s2 max.
Malfunction: 500 m/s2 max.
Degree of protection : IP67
Operating Force (OF) : Standard value 5.69 N max.
Release Force (RF) : Standard value 1.47 N min.
Pre-Travel (PT) : Standard value 10±3 °
Movement Differential (MD) : Standard value 3 ° max.
Over-Travel (OT) : Standard value 50 ° min.
