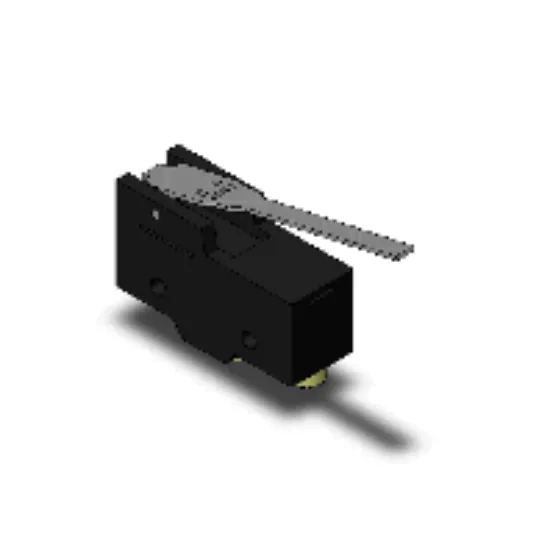

aut.vn Công tắc hành trình Limit Switch Omron X-10GW-B

Actuator : Hinge lever
Contact form : SPDT (Single-Pole, Double-Throw type)
Terminal : Screw terminal (M4)
Rated current : 10 A
Degree of protection : IP00
Actuator : Hinge lever
Stainless steel lever
Radius of curvature: R63.5
Contact form : SPDT (Single-Pole, Double-Throw type)
Ag
Contact gap (standard value) : 0.9 mm
Terminal : Screw terminal (M4)
Load : General load
Rated current : 10 A
Ratings (DC) Non-Inductive load : Resistive load: 10 A at 8 VDC, 10 A at 14 VDC, 10 A at 30 VDC, 10 A at 125 VDC, 3 A at 250 VDC
Lamp load (NC): 3 A at 8 VDC, 3 A at 14 VDC, 3 A at 30 VDC, 3 A at 125 VDC, 1.5 A at 250 VDC
Lamp load (NO): 1.5 A at 8 VDC, 1.5 A at 14 VDC, 1.5 A at 30 VDC, 1.5 A at 125 VDC, 0.75 A at 250 VDC
Inductive load (NC): 10 A at 8 VDC, 10 A at 14 VDC, 10 A at 30 VDC, 7.5 A at 125 VDC, 2 A at 250 VDC
Inductive load (NO): 10 A at 8 VDC, 10 A at 14 VDC, 10 A at 30 VDC, 6 A at 125 VDC, 1.5 A at 250 VDC
Motor load (NC): 5 A at 8 VDC, 5 A at 14 VDC, 5 A at 30 VDC, 5 A at 125 VDC, 2 A at 250 VDC
Motor load (NO): 2.5 A at 8 VDC, 2.5 A at 14 VDC, 2.5 A at 30 VDC, 2.5 A at 125 VDC, 1.5 A at 250 VDC
Inrush current : NC: 30 A max.
NO: 15 A max.
Ambient temperature : -25 to 80 ℃ (with no freezing or condensation)
Ambient humidity : 35 to 85 %
Permissible operating frequency : Electrical: 20 operations / 1 minute max.
Mechanical: 240 operations / 1 minute max.
Contact resistance (Initial value) : 15 mΩ max.
Insulation resistance : 100 MΩ min. (at 500 VDC)
Dielectric strength : Between each terminal of the same polarities: 1,500 VAC 50/60 Hz 1 min
Between live-metallic part and ground: 1,500 VAC 50/60 Hz 1 min
Between each terminal and non-live-metallic part: 1,500 VAC 50/60 Hz 1 min
Durability : Electrical: 100,000 operations min.
Mechanical: 1,000,000 operations min.
Degree of protection : IP00
Degree of protection against electric shock : Class I
Proof tracking index(PTI) : 175
: Malfunction: 10 to 55 Hz, 1.5 mm double amplitude (Malfunction: 1 ms max.)
: Destruction: 1000 m/s2
Operating Force （OF） : Standard value 1.08 N max.
Release Force （RF） : Standard value 0.14 N min.
Pre-Travel （PT） : Standard value 3.9 mm max.
Over-Travel （OT） : Standard value 34.6 mm max.
Movement Differential （MD） : Standard value 4.8 mm min.
Operating Position （OP） : Standard value 20.3 to 21.9 mm
