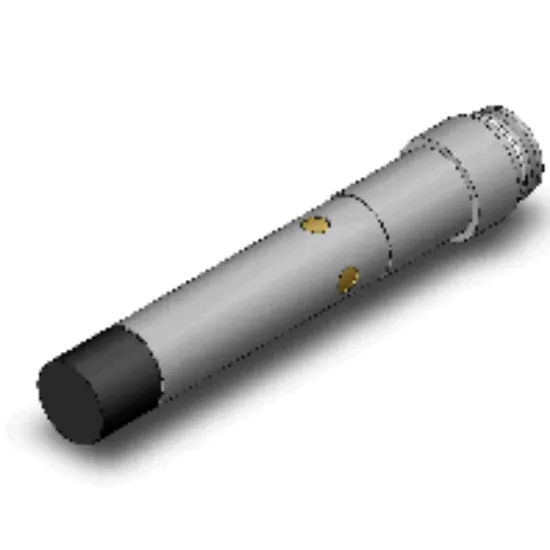

aut.vn Cảm biến tiệm cận Omron E2E-C06N04-MC-B2

Sensing head size : 6.5 dia.
Type : Cylinder type, Unshielded
Power source : DC Three-wires models
Sensing distance : 4 mm ±10%
Setting distance : 0 to 2.8 mm
Operation mode : NC
Sensing head size : 6.5 dia.
Type : Cylinder type, Unshielded
Power source : DC Three-wires models
Sensing distance : 4 mm ±10%
Setting distance : 0 to 2.8 mm
Differential distance : 15% max. of sensing distance
Sensing object : Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object : Iron 12 x 12 x 1 mm
Response frequency : 3 kHz
Power supply voltage : 10 to 30 VDC ripple (p-p) 10% included
Operating voltage range : 10 to 30 VDC
Current consumption : 10 mA max.
Control output (Output type) : PNP open collector
Control output (Switching capacity) : 200 mA max.
Ambient temperature of 60 to 70 ℃: 100 mA max.
Control output (Residual voltage) : 2 V max. (Load current 200 mA with cable length of 2 m)
Indicator : Operation indicator (yellow)
Operation mode : NC
Protective circuit : Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
Surge suppressor
Ambient temperature (Operating) : -25 to 70 ℃
Ambient temperature (Storage) : -25 to 70 ℃
Ambient humidity (Operating) : 35 to 95 %
Ambient humidity (Storage) : 35 to 95 %
Temperature influence : ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
Voltage influence : ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance : Between charged parts and the case: 50 MΩ min. at 500 VDC
Dielectric strength : Between charged parts and the case: 500 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance : Destruction: 500 m/s2 10 times each in X, Y, and Z directions
Degree of protection : IEC: IP67
Company standard: Oil-proof
Connection method : M8 connector models
Weight : Package: Approx. 15 g
Material : Case: SUS303 (EN1.4305)
Sensing surface: Heat-resistant ABS resin
Accessories : Instruction manual, Model label
