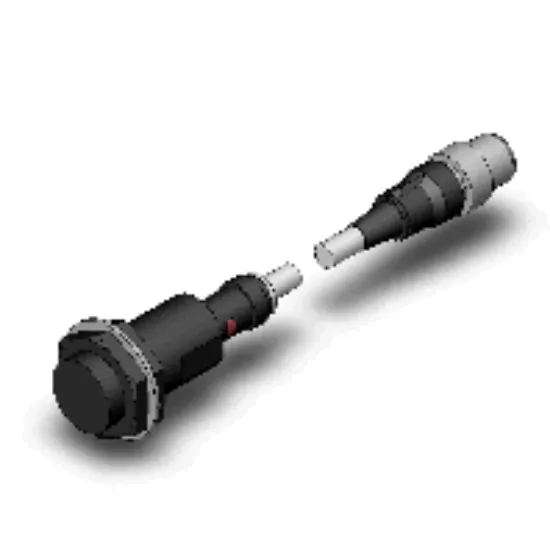

aut.vn Cảm biến tiệm cận Omron E2EF-QX7D1-M1TGJ 0.3M

Sensing head size : M18
Type : Spatter-resistant type, Cylinder type (with screw), Shielded
Power source : DC 2-wire models
Sensing distance : 7 mm ±10%
Setting distance : 0 to 4.9 mm
Operation mode : NO
Sensing head size : M18
Type : Spatter-resistant type, Cylinder type (with screw), Shielded
Power source : DC 2-wire models
Sensing distance : 7 mm ±10%
Setting distance : 0 to 4.9 mm
Differential distance : 15% max. of sensing distance
Sensing object : Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object : Iron 30 x 30 x 1 mm
Response frequency : 100 Hz (Average value)
Power supply voltage : 10 to 30 VDC ripple (p-p) 10% included
Leakage current : 0.8 mA max.
Control output (Switching capacity) : 3 to 100 mA
Control output (Residual voltage) : 3 V max. (Load current 100 mA max. with cable length of 2 m)
Indicator : Operation indicator (red), Operation setting indicator (green)
Operation mode : NO
Polarity : Polarity
Protective circuit : Output short-cut protection
Surge suppressor
Ambient temperature (Operating) : -10 to 70 ℃
Ambient temperature (Storage) : -25 to 70 ℃
Ambient humidity (Operating) : 35 to 95 %
Ambient humidity (Storage) : 35 to 95 %
Temperature influence : ±20% max. of sensing distance at 23 ℃ in the temperature range of −10 to 70 ℃
Voltage influence : ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance : Between charged parts and the case: 50 MΩ min. at 500 VDC
Dielectric strength : Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance : Destruction: 1000 m/s2 10 times each in X, Y, and Z directions
Degree of protection : IEC: IP67
Connection method : Prewired M12 smart click connector model (0.3 m)
Weight : Package: Approx. 110 g
Material : Case: Stainless steel (SUS303) Fluoride resin coating
Sensing surface: Stainless steel (SUS303) Fluoride resin coating
Clamping nuts: Stainless steel (SUS303) Fluoride resin coating
Toothed washers: Iron zinc plating
Cable: PVC (flame retardant)
Accessories : Instruction manual
