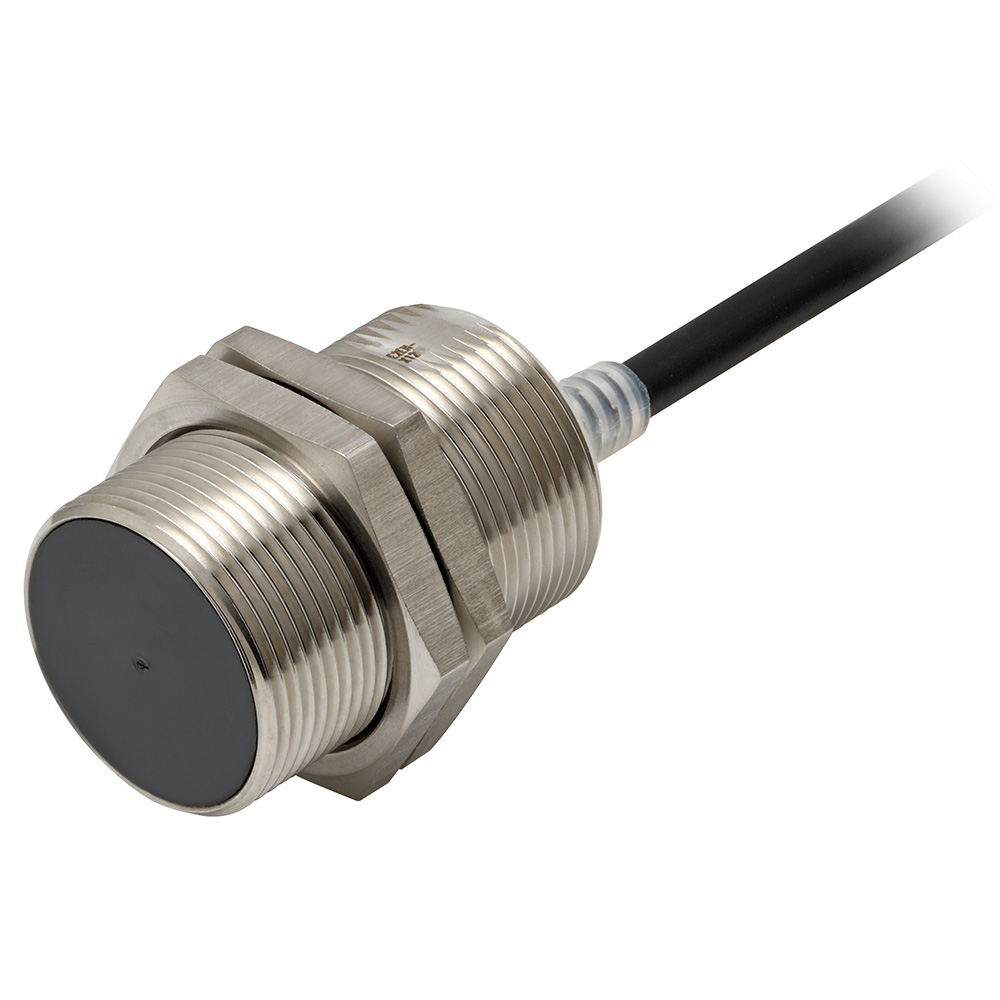

aut.vn Cảm biến tiệm cận Omron E2EH-X12B1 5M

Sensing head size : M30
Type : Cylinder type (with screw), Shielded
Power source : DC Three-wires models
Sensing distance : 12 mm ±10%
Setting distance : 0 to 9.6 mm
Operation mode : NO
Sensing head size : M30
Type : Cylinder type (with screw), Shielded
Power source : DC Three-wires models
Sensing distance : 12 mm ±10%
Setting distance : 0 to 9.6 mm
Differential distance : 15% max. of sensing distance
Sensing object : Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object : Iron 36 x 36 x 1 mm
Response frequency : 100 Hz (Average value)
Power supply voltage : 12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range : 10 to 32 VDC
Current consumption : 10 mA max.
Control output (Output type) : PNP open collector
Control output (Switching capacity) : 100 mA max.
Indicator : Operation indicator (yellow)
Operation mode : NO
Protective circuit : Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
Surge suppressor
Ambient temperature (Operating) : 0 to 100 ℃
Ambient temperature (Storage) : -25 to 70 ℃
Ambient humidity (Operating) : 35 to 95 %
Ambient humidity (Storage) : 35 to 95 %
Temperature influence : ±10% max. of sensing distance at 23 ℃ in the temperature range of 0 to 70 ℃
±15% max. of sensing distance at 23 ℃ in the temperature range of +70 to +100 ℃
Voltage influence : ±10% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance : Between charged parts and the case: 50 MΩ min. at 500 VDC
Dielectric strength : Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance : Destruction: 1000 m/s2 10 times each in X, Y, and Z directions
Degree of protection : IEC: IP67
DIN40050-9 IP69K
Connection method : Pre-wired models (5 m)
Material : Case: Stainless steel (SUS316L)
Sensing surface: Polybutylene terephthalate (PBT)
Clamping nuts: Stainless steel (SUS316L)
Cable: Heat-resistant PVC cable
Accessories : Instruction manual
