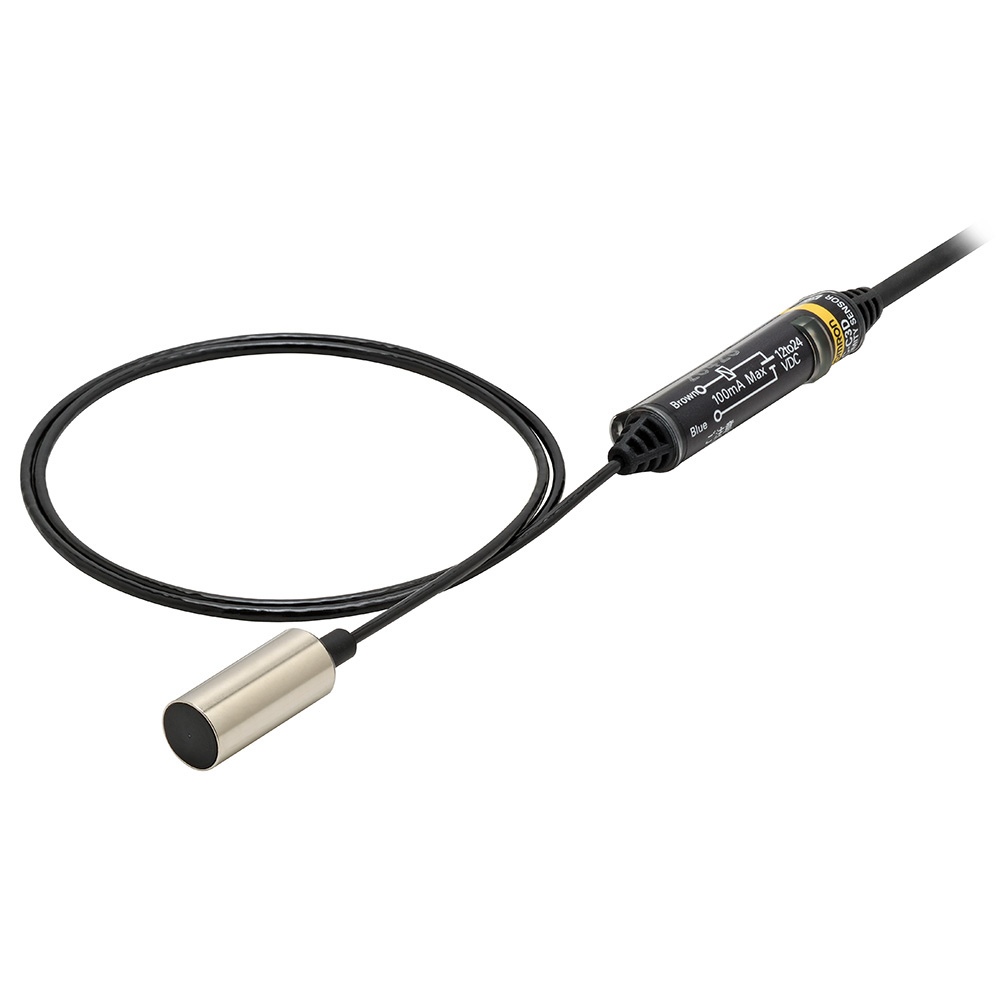

aut.vn Cảm biến tiệm cận Omron E2EC-C3D2 5M

Sensing head size : 8 dia.
Type : Cylinder type, Shielded
Power source : DC 2-wire models
Sensing distance : 3 mm ±10%
Setting distance : 0 to 2.1 mm
Operation mode : NC
Sensing head size : 8 dia.
Type : Cylinder type, Shielded
Power source : DC 2-wire models
Sensing distance : 3 mm ±10%
Setting distance : 0 to 2.1 mm
Differential distance : 10% max. of sensing distance
Sensing object : Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object : Iron 8 x 8 x 1 mm
Response frequency : 1 kHz (Average value)
Power supply voltage : 12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range : 10 to 30 VDC
Leakage current : 0.8 mA max.
Control output (Switching capacity) : 5 to 100 mA
Indicator : Operation indicator (red)
Operation mode : NC
Protective circuit : Output short-cut protection
Surge suppressor
Ambient temperature (Operating) : -25 to 70 ℃
Ambient temperature (Storage) : -25 to 70 ℃
Ambient humidity (Operating) : 35 to 95 %
Ambient humidity (Storage) : 35 to 95 %
Temperature influence : ±20% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃
Voltage influence : ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance : Between charged parts and the case: 50 MΩ min. at 500 VDC
Dielectric strength : Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance : Destruction: 1000 m/s2 10 times each in X, Y, and Z directions
Degree of protection : IEC: IP67
Company standard: Oil-proof (For Sensor Head only)
Connection method : Pre-wired models (5 m)
Material : Case: Brass
Sensing surface: ABS
Accessories : Instruction manual, Amplifier Mountig Brackets
