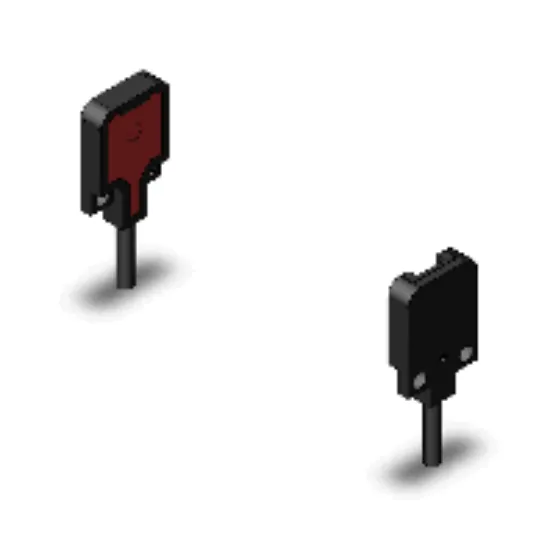

aut.vn Cảm biến quang điện Omron E3T-FT21F 2M

Sensing method : Through-beam type
Sensing distance : 300 mm
Light source : Infrared LED (860 nm)
Connection method : Pre-wired models
Shape : Rectangular type (Flat)
Sensing method : Through-beam type
Sensing distance : 300 mm
Standard sensing object : Opaque: 1.3 mm dia. min.
Minimum sensing object : 1.3 mm min. dia. (Opaque)
Directional angle : Emitter: 3 to 25 °
Receiver: 3 ° min.
Light source : Infrared LED (860 nm)
Power supply voltage : 12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption : Emitter: 10 mA max.
Receiver: 20 mA max.
Control output : NPN open collector
26.4 VDC max.
50 mA max.
Residual voltage: 1 V max. (Load current Less than 10 mA)
Residual voltage: 2 V max. (Load current 10 to 50 mA)
Operation mode : Light-ON
Protective circuit : Output short-cut protection, Output reverse polarity protection, Power supply reverse polarity protection
Response time : Operate or reset: 1 ms max.
Ambient illuminance : Incandescent lamp: 5,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating) : -25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) : -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) : 35 to 85 % (with no condensation)
Ambient humidity range (Strage) : 35 to 95 % (with no condensation)
Insulation resistance : 20 MΩ min. (500 VDC megger)
Dielectric strength : 1000 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 2000 Hz, 1.5 mm or 300 m/s2 double amplitude for 0.5 hours each in X, Y, and Z directions
Shock resistance : Destruction: 1000 m/s2 3 times each in X, Y and Z directions
Connection method : Pre-wired models (Cable length 2 m)
Indicator : Operation indicator (orange), Stability indicator (green)
Weight : Package: Approx. 40 g
Accessories : Instruction manual, Set screws for mounting (M2*8), Nuts
Material : Case: Polybutylene terephthalate (PBT)
Lens: Denatured Polyarylate
Display: Denatured Polyarylate
