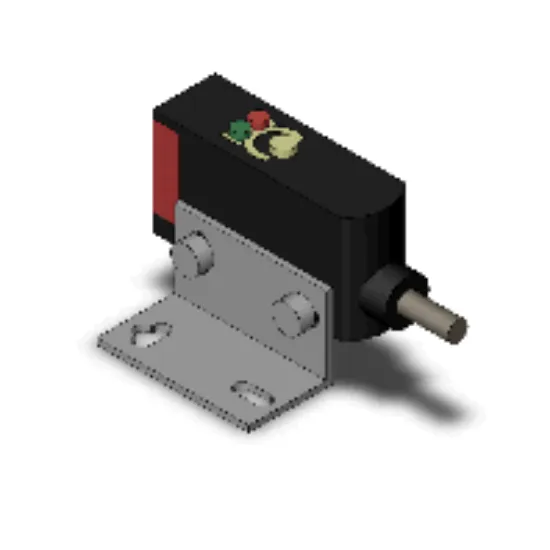

aut.vn Cảm biến quang điện Omron E3S-R12 5M

Sensing method : Retro-reflective without M.S.R. function
Sensing distance : When using the E39-R1: 100 to 300 mm
Light source : Infrared LED (850 nm)
Connection method : Pre-wired models
Shape : Square type
Sensing method : Retro-reflective without M.S.R. function
Sensing distance : When using the E39-R1: 100 to 300 mm
Standard sensing object : Opaque: 75 mm dia. min.
thickness: 0.7 mm, LCD glass plate
Glass tube (10 mm dia. thickness: 1 mm length: 30 mm)
Directional angle : 3 to 10 °
Light source : Infrared LED (850 nm)
Power supply voltage : 10 to 30 VDC ripple (p-p) 10% included
Current consumption : 30 mA max.
Control output : NPN open collector
30 VDC max.
100 mA max.
Residual voltage: 1 V max.
Operation mode : Light-ON/Dark-ON selectable
Protective circuit : Output short-circuit protection, Power supply reverse polarity protection
Response time : Operate or reset: 1 ms max.
Sensitivity setting : 2-turn endless adjustment
Ambient illuminance : Incandescent lamp: 5,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating) : 0 to 40 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) : -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) : 35 to 85 % (with no condensation)
Ambient humidity range (Strage) : 35 to 95 % (with no condensation)
Insulation resistance : 20 MΩ min. (500 VDC megger)
Dielectric strength : 1000 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance : Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection : IEC: IP67
Connection method : Pre-wired models (Cable length 5 m)
Indicator : Light indicator (red), Stability indicator (green)
Accessories : Instruction manual, Mounting bracket (with screws), Sensitivity adjustment driver, Reflector
Material : Case: Polybutylene terephthalate (PBT)
Lens: Denatured Polyarylate
Mounting Bracket: Stainless steel (SUS304)
