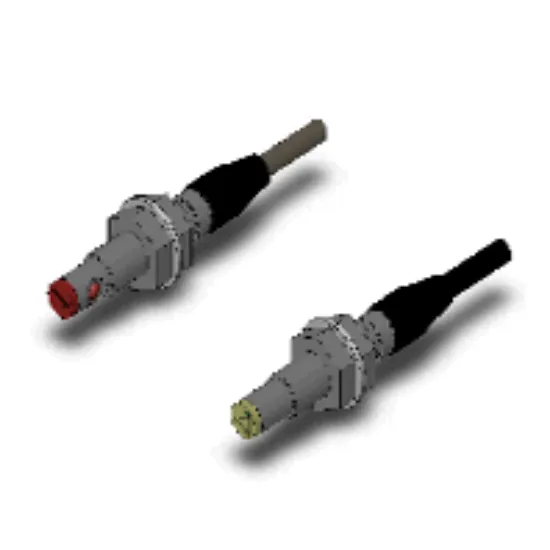

aut.vn Cảm biến quang điện Omron E3T-CT22S 2M

Sensing method : Through-beam type
Sensing distance : 500 mm
Light source : Red LED (625 nm)
Connection method : Pre-wired models
Shape : Cylinder type
Sensing method : Through-beam type
Sensing distance : 500 mm
Standard sensing object : Opaque, 5 mm dia. min.
Directional angle : Receiver: 10 °
Light source : Red LED (625 nm)
Power supply voltage : 12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption : Emitter: 15 mA max.
Receiver: 15 mA max.
Control output : NPN open collector
30 VDC max.
80 mA max.
Residual voltage: 1 V max.
Operation mode : Dark-ON
Protective circuit : Output short-cut protection, Power supply reverse polarity protection
Response time : Operate or reset: 0.5 ms max.
Ambient illuminance : Incandescent lamp: 3,000 lx max.
Ambient temperature range (Operating) : -25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) : -30 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) : 35 to 85 % (with no condensation)
Ambient humidity range (Strage) : 35 to 85 % (with no condensation)
Insulation resistance : 20 MΩ min. (500 VDC megger)
Dielectric strength : 500 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance : Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection : IEC: IP65
Connection method : Pre-wired models (Cable length 2 m)
Indicator : Operation indicator (orange), Stability indicator (green)
Weight : Package: Approx. 60 g
Accessories : Instruction manual, Hexagonal nuts, Toothed washers
Material : Case: SUS303
Lens: Polysulphone
Display: Polysulphone
Hexagon Nut: SUS303
Toothed washers: SUS303
