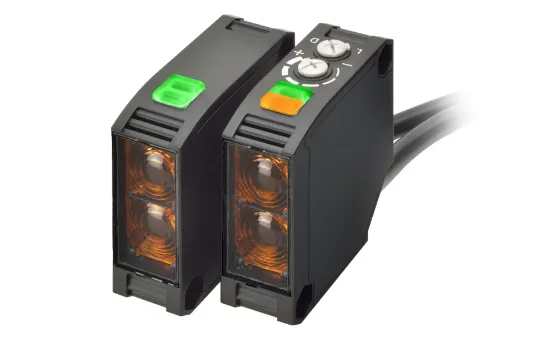

aut.vn Cảm biến quang điện Omron E3JK-TR11-C 2M

Sensing method : Through-beam type
Sensing distance : 40 m
Light source : Red LED (624 nm)
Connection method : Pre-wired models
Shape : Square type
Sensing method : Through-beam type
Sensing distance : 40 m
Standard sensing object : Opaque: 17 mm dia. min.
Directional angle : Emitter: 3 ° min.
Receiver: 3 ° min.
Light source : Red LED (624 nm)
Power supply voltage : 24 to 240 VAC±10% 50/60 Hz
24 to 240 VDC±10% ripple (p-p) 10% max.
Power consumption : Emitter and Receiver: 3 W max.
Control output : Relay output (SPDT)
250 VAC 3 A (cosφ= 1) max.
5 VDC 10 mA min.
Life expectancy (relay output) : Electrical: 100 thousand times or more (switching frequency 1800 times/hour)
Mechanical: 50 million times or more (switching frequency 18000 times/hour)
Operation mode : Light-ON/Dark-ON selectable
Response time : 20 ms max.
Sensitivity setting : Single-turn adjustment (Receiver only)
Ambient illuminance : Incandescent lamp: 3,000 lx
Sunlight: 11,000 lx
Ambient temperature range (Operating) : -25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) : -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) : 35 to 85 % (with no condensation)
Ambient humidity range (Strage) : 35 to 95 % (with no condensation)
Insulation resistance : 20 MΩ min. (500 VDC megger)
Dielectric strength : 1500 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance : Destruction: 500 m/s2 3 times each in X, Y and Z directions
Malfunction: 100 m/s2 3 times each in X, Y and Z directions
Degree of protection : IEC: IP64
Connection method : Pre-wired models (Cable length 2 m)
Indicator : Operation indicator (orange), Stability indicator (green), Power indicator (green)
Weight : Package: Approx. 350 g
Accessories : Instruction manual, Mounting bracket
Material : Case: ABS
Lens: Methacrylate resin
Display: Methacrylate resin
Adjustment: POM
Cable: Polyvinyl chloride (PVC)
