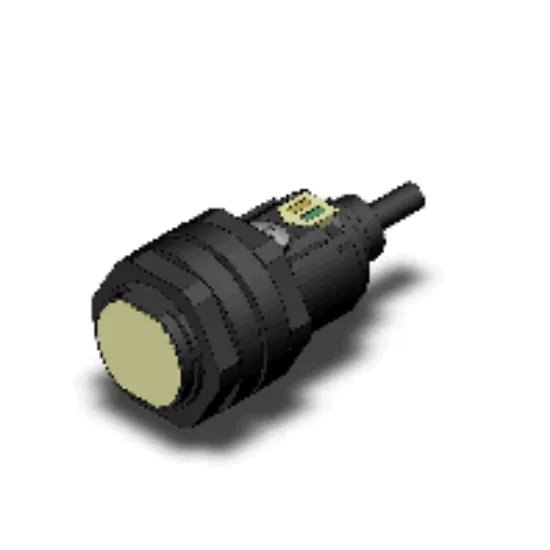

aut.vn Cảm biến quang điện Omron E3FA-DN11 2M

Sensing method : Diffuse-reflective
Sensing distance : White paper 300 x 300 mm: 100 mm
Light source : Red LED (624 nm)
Connection method : Pre-wired models
Shape : Cylinder type
Sensing method : Diffuse-reflective
Sensing distance : White paper 300 x 300 mm: 100 mm
Spot size : 40 x 45 mm (sensing distance: 100 mm)
Differential distance : 20% max.
Light source : Red LED (624 nm)
Power supply voltage : 10 to 30 VDC±10% ripple (p-p) 10% included
Current consumption : 25 mA max.
Control output : NPN open collector
30 VDC max.
100 mA max.
Residual voltage: 3 V max.
Operation mode : Light-ON/Dark-ON selectable
Protective circuit : Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection
Response time : Operate or reset: 0.5 ms max.
Sensitivity setting : Single-turn adjustment
Ambient illuminance : Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating) : -25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) : -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) : 35 to 85 % (with no condensation)
Ambient humidity range (Strage) : 35 to 95 % (with no condensation)
Insulation resistance : 20 MΩ min. (500 VDC megger)
Dielectric strength : 1000 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance : Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection : IEC: IP67
DIN40050-9: IP69K
Connection method : Pre-wired models (Cable length 2 m)
Indicator : Operation indicator (orange), Stability indicator (green)
Weight : Package: Approx. 60 g
Main Unit: Approx. 50 g
Accessories : Instruction sheet, M18 nuts
Material : Case: ABS
Lens: Methacrylate resin (PMMA)
Display: Methacrylate resin (PMMA)
Adjustment: POM
Nut: POM
