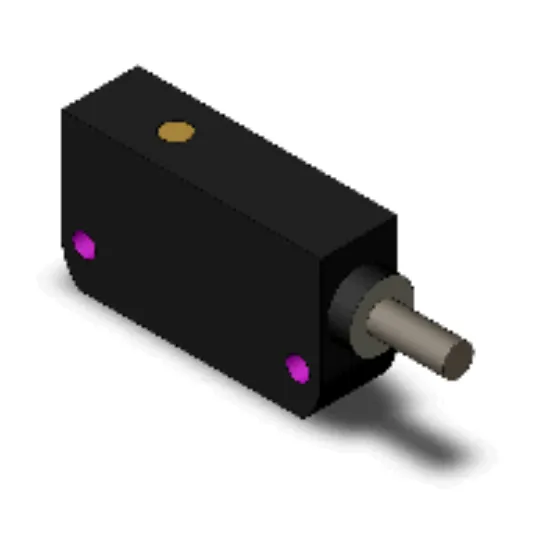

aut.vn Cảm biến quang điện Omron E3S-LS3N 0.5M

Sensing method : Limited Reflective
Sensing distance : White paper 80 x 80 mm, installation distance from background: 60 mm min.: 20 to 35 mm
Black paper 80 x 80 mm, installation distance from background: 60 mm min.: 20 to 30 mm
Light source : Red LED (660 nm)
Connection method : Pre-wired models
Shape : Square type
Sensing method : Limited Reflective
Sensing distance : White paper 80 x 80 mm, installation distance from background: 60 mm min.: 20 to 35 mm
Black paper 80 x 80 mm, installation distance from background: 60 mm min.: 20 to 30 mm
Light source : Red LED (660 nm)
Power supply voltage : 12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption : 25 mA max.
Control output : NPN open collector
24 VDC max.
100 mA max.
Residual voltage: 1 V max.
Operation mode : Light-ON
Protective circuit : Output short-circuit protection, Power supply reverse polarity protection
Response time : Operate or reset: 1 ms max.
Ambient illuminance : Incandescent lamp: 5,000 lx max.
Ambient temperature range (Operating) : -10 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) : -25 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) : 35 to 85 % (with no condensation)
Ambient humidity range (Strage) : 35 to 95 % (with no condensation)
Insulation resistance : 20 MΩ min. (500 VDC megger)
Dielectric strength : 1000 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance : Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection : IEC: IP40
Connection method : Pre-wired models (Cable length 0.5 m)
Indicator : Operation indicator (orange)
Accessories : Instruction manual, M3 screw
Material : Case: ABS
Lens: Methacrylate resin
