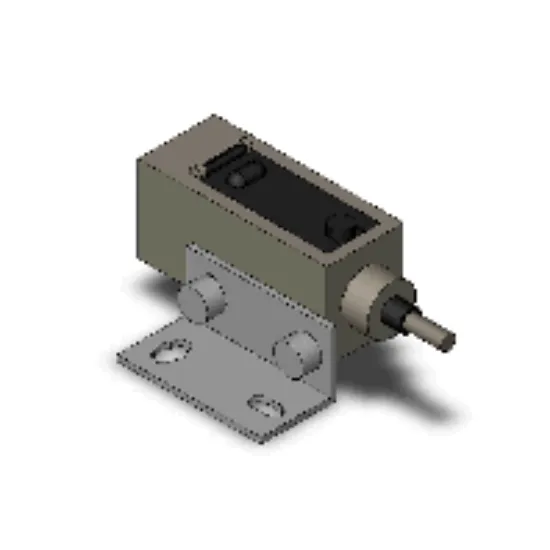

aut.vn Cảm biến quang điện Omron E3S-CD11 2M

Sensing method : Diffuse-reflective
Sensing distance : White paper 300 x 300 mm: 700 mm
Light source : Infrared LED (850 nm)
Connection method : Pre-wired models
Shape : Square type
Sensing method : Diffuse-reflective
Sensing distance : White paper 300 x 300 mm: 700 mm
Differential distance : 20% max. of sensing distance
Light source : Infrared LED (850 nm)
Power supply voltage : 10 to 30 VDC ripple (p-p) 10% included
Current consumption : 40 mA max.
Control output : NPN/PNP open collector (selectable)
30 VDC max.
100 mA max.
Residual voltage: 1.2 V max. (NPN output)
Residual voltage: 2 V max. (PNP output)
Operation mode : Light-ON/Dark-ON selectable
Protective circuit : Output short-circuit protection, Power supply reverse polarity protection
Response time : Operate or reset: 1 ms max.
Sensitivity setting : 2-turn endless adjustment (with indicator)
Ambient illuminance : Incandescent lamp: 5,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating) : -25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) : -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) : 35 to 85 % (with no condensation)
Ambient humidity range (Strage) : 35 to 95 % (with no condensation)
Insulation resistance : 20 MΩ min. (500 VDC megger)
Dielectric strength : 1000 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 2000 Hz, 1.5 mm or 300 m/s2 double amplitude for 0.5 hours each in X, Y, and Z directions
Shock resistance : Destruction: 1000 m/s2 3 times each in X, Y and Z directions
Degree of protection : IEC: IP67
Company standard: Oil-proof
NEMA: 6P (indoors only)
Connection method : Pre-wired models (Cable length 2 m)
Indicator : Light indicator (red), Stability indicator (green)
Weight : Package: Approx. 150 g
Accessories : Instruction manual, Mounting bracket (with screws), Adjustment driver
Material : Case: Zinc diecast
Lens: Methacrylate resin
Cover: Polyether sulfone
Mounting Bracket: Stainless steel (SUS304)
