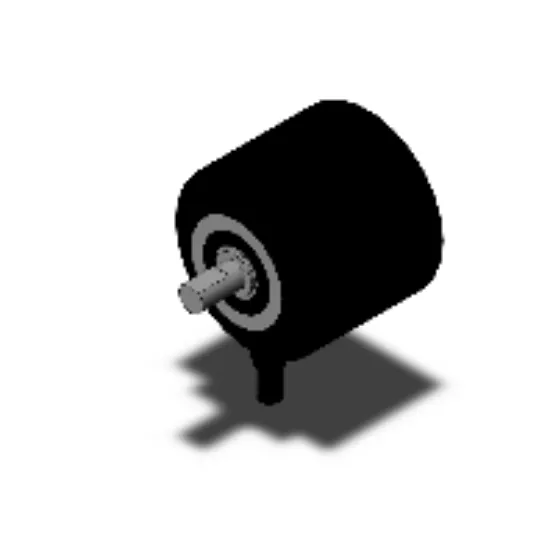

aut.vn Cảm biến Encoder Omron E6C3-AG5C 360P/R 1M

Encoding method : Absolute Shaft model
Resolution : 360 P/R
Output code : Gray code
Control output : NPN open collector
Connection method : Pre-wired models (Cable length: 1 m)
Categorise : Absolute Shaft model
Diameter : 50 mm dia.
Power supply voltage : 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max.
Current consumption : 70 mA max.
Resolution : 360 P/R
Inrush current : Approx. 6 A (0.8 ms)
Output code : Gray code
Control output : Output type : NPN open collector
Load power supply voltage : 30 V max.DC
Sink current : 35 mA max.
Residual voltage : 0.4 V max. (at sink current 35 mA)
Logic : Negative logic (high = 0, low = 1)
Direction of rotation : Output code increases for CW (as viewed from end of shaft)
Positioning signal : None
Strobe signal : None
Parity signal : None
Max. response frequency : 20 kHz
Rise and fall times of output : 1 µs max. (Cable length: 1 m, load current: 35 mA)
Starting torque : Room temperature: 10 mN.m max.
Low temperature: 30 mN.m max.
Moment of inertia : 2.3 x 10-6 kg.m2 max.
Shaft loading : Radial: 80 N
Thrust: 50 N
Max. permissible rotation : 5000 r/min
Ambient temperature : Operating: -10 to 70 ℃ (with no icing)
Storage: -25 to 85 ℃ (with no icing)
Ambient humidity : Operating: 35 to 85 % (with no condensation)
Storage: 35 to 85 % (with no condensation)
Insulation resistance : Between charged parts and the case: 20 MΩ or higher (500 VDC megger)
Dielectric strength : Between charged parts and the case: 500 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 500 Hz, 2-mm or 150 m/s2 double amplitude for 11 min 3 times each in X, Y, and Z directions
Shock resistance : Destruction: 1000 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection : IEC: IP65
Company standard: Oil resistance
Connection method : Pre-wired models (Cable length: 1 m)
Material : Case: Aluminum
Main Unit: Aluminum
Shaft: SUS303
Weight : Package: Approx. 300 g
Accessories : Instruction manual
