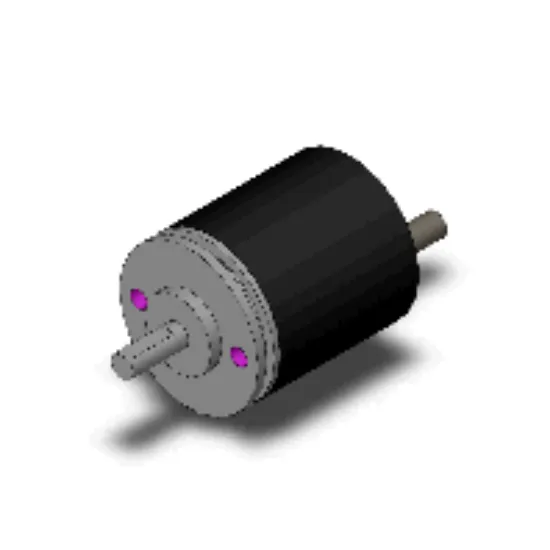

aut.vn Cảm biến Encoder Omron E6A2-CS5C 360P/R 0.5M

Encoding method : Incremental Shaft model
Resolution : 360 P/R
Output phases : A
Control output : NPN open collector
Connection method : Pre-wired models (Cable length: 0.5 m)
Categorise : Incremental Shaft model
Diameter : 25 mm dia.
Power supply voltage : 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max.
Current consumption : 20 mA max.
Resolution : 360 P/R
Inrush current : Approx. 9 A (0.3 ms)
Output phases : A
Control output : Output type : NPN open collector
Load power supply voltage : 30 V max.DC
Sink current : 30 mA max.
Residual voltage : 0.4 V max. (at sink current 30 mA)
Max. response frequency : 30 kHz
Output duty factor : 50±25%
Rise and fall times of output : 1 µs max. (Cable length: 0.5 m, output voltage: 5 V, load resistance: 1 kΩ)
Starting torque : 1 mN.m max.
Moment of inertia : 1 x 10-7 kg.m2 max.
Shaft loading : Radial: 10 N
Thrust: 5 N
Max. permissible rotation : 5000 r/min
Ambient temperature : Operating: -10 to 55 ℃ (with no icing)
Storage: -25 to 80 ℃ (with no icing)
Ambient humidity : Operating: 35 to 85 % (with no condensation)
Storage: 35 to 85 % (with no condensation)
Insulation resistance : Between charged parts and the case: 20 MΩ or higher (500 VDC megger)
Dielectric strength : Between charged parts and the case: 500 VAC 50/60 Hz 1 min
Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance : Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection : IEC: IP50
Connection method : Pre-wired models (Cable length: 0.5 m)
Material : Case: Aluminum alloy
Main Unit: Aluminum
Shaft: SUS420J2
Mounting Bracket: Iron zinc plating
Weight : Package: Approx. 35 g
Accessories : Instruction manual, Couplings, Hex-head spanner
