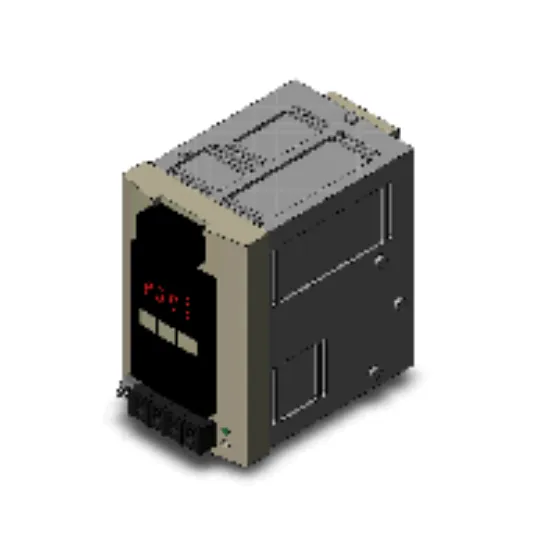

aut.vn Bộ nguồn xung Omron S8VS-18024B-F

Power rating : 180 W
Output voltage : 24 VDC
Rated input voltage : 100 to 240 VAC
Construction : Covered type
Connection : Terminal blocks
Terminal type : Screwless terminal
Power rating : 180 W
Output voltage : 24 VDC
Efficiency : 85 % typ. (at 100 VAC input)
87 % typ. (at 200 VAC input)
Input : Rated input voltage : 100 to 240 VAC
Allowable input voltage variable range : 85 to 264 VAC
80 to 370 VDC
Frequency : 50/60Hz (47 to 63 Hz)
Rated input current : 2.9 A max., 2.2 A typ. (at 100 VAC input)
1.6 A max., 1.1 A typ. (at 200 VAC input)
Power factor : 0.9 min.
Leakage current : 0.5 mA max. (at 100 VAC input)
1.0 mA max. (at 200 VAC input)
Inrush current (cold start at 25 ℃) : 17.5 A max., 14 A typ. (at 100 VAC input)
35 A max., 28 A typ. (at 200 VAC input)
Output : Rated output current : 7.5 A
Output voltage variable range : -10 to +15 % With V.ADJ
Ripple : 180 mV max.
Static input variation influence : 0.5 % max. (at 100% load)
Static load variation influence : 1.5 % max. (at rated input, 0 to 100% load)
Ambient temperature variation influence : 0.05 %/℃ max.
Start up time : 580 ms typ. (at 100 VAC input)
490 ms typ. (at 200 VAC input)
Hold time : 70 ms typ. (at 100 VAC input)
70 ms typ. (at 200 VAC input)
Additional functions : Overload protection : Yes, automatic reset
Overvoltage protection : Yes, Shut off the input voltage and turn on the input again
Series operation : Yes (Up to 2 Power Supplies with external diode)
Parallel operation : No (However, backup operation is possible, external diodes required.)
Output indicator : Yes (color: green)
Output voltage indication : Yes (switching)
Output current indication : Yes (switching)
Peak-hold current indication : Yes (switching)
Total run time monitor : Output: Yes (Transistor output, 30 VDC max., 50 mA max)
Indication: Yes (switching)
Undervoltage alarm : Output: Yes (Transistor output, 30 VDC max., 50 mA max)
Indication: Yes (switching)
Insulation : Dielectric strength : Between all input terminals and PE terminals: 2 kVAC for 1 min, Detection current: 20 mA
Between all input terminals and all output terminals/alarm outputs: 3 kVAC for 1 min, Detection current: 20 mA
Between all output terminals/alarm outputs and all PE terminals: 1 kVAC for 1 min, Detection current: 20 mA
Between all output terminals and all alarm outputs: 500 VAC for 1 min, Detection current: 20 mA
Insulation resistance : Between all output terminals/alarm outputs and all input terminals/PE terminals: 100 MΩ min., at 500 VDC
Environment : Vibration resistance : 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
Shock resistance : 150 m/s2, in each 6 directions 3 times
Ambient temperature (Operating) : -10 to 60 ℃
Ambient temperature (Storage) : -25 to 65 ℃
Ambient humidity (Operating) : 25 to 85 %
Ambient humidity (Storage) : 25 to 90 %
Reliability : Life expectancy : 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting)
Construction : Construction : Covered type
Connection : Terminal blocks
Terminal type : Screwless terminal
Mounting : DIN track mounting
Attachment : Terminal block cover
Weight (Main) : 850 g max.
