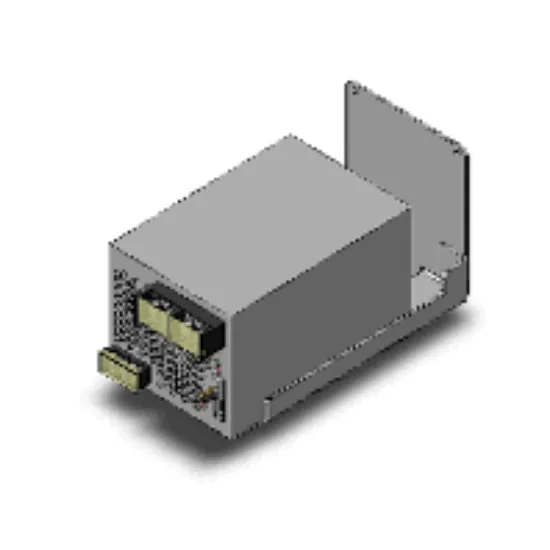

aut.vn Bộ nguồn xung Omron S8JX-P60012C

Power rating : 600 W
Output voltage : 12 VDC
Rated input voltage : 100 to 240 VAC
Construction : Covered type
Connection : Terminal blocks
Terminal type : Screw terminal
Power rating : 600 W
Output voltage : 12 VDC
Efficiency : 76 % min.
Input : Rated input voltage : 100 to 240 VAC
Allowable input voltage variable range : 85 to 264 VAC
80 to 370 VDC
Frequency : 50/60Hz (47 to 63 Hz)
Rated input current : 8.7 A max. (at 100 VAC input)
4.3 A max. (at 200 VAC input)
Power factor : 0.9 min.
Leakage current : 0.5 mA max. (at 100 VAC input)
1 mA max. (at 200 VAC input)
Inrush current (cold start at 25 ℃) : 17.5 A max. (at 100 VAC input)
35 A max. (at 200 VAC input)
Output : Rated output current : 53 A
Output voltage variable range : -10 to +15 % (With V.ADJ)
Ripple : 2 %(p-p) max.
Static load variation influence : 0.8 % max. (at rated input, 0 to 100% load)
Ambient temperature variation influence : 0.05 %/℃ max.
Start up time : 1000 ms max.
Hold time : 20 ms min. (at 100 VAC input) (at 100% load)
20 ms min. (at 200 VAC input)
Additional functions : Overload protection : Yes, automatic reset
Overvoltage protection : Yes, Shut off the input voltage and turn on the input again
Overheat protection : Yes, Shut off the input voltage and turn on the input again
Series operation : Yes (Up to 2 Power Supplies with external diode)
Parallel operation : Yes (Up to 5 Power Supplies)
Alarm indication : Yes (color: red)
Output indicator : Yes (color: green)
Remote sensing function : Yes
Remote control function : Yes
Insulation : Dielectric strength : Between all input terminals and all output terminals: 3 kVAC for 1 min, Detection current: 20 mA
Between all input terminals and PE terminals: 2 kVAC for 1 min, Detection current: 20 mA
Between all output terminals and PE terminals: 1 kVAC for 1 min, Detection current: 100 mA
Between all output terminals and RC terminals: 100 VAC for 1 min, Detection current: 100 mA
Between all output terminals and ALM terminals: 500 VAC for 1 min, Detection current: 20 mA
Insulation resistance : Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
Environment : Vibration resistance : 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
Shock resistance : 150 m/s2, in each 6 directions 3 times
Ambient temperature (Operating) : -10 to 70 ℃ (with no freezing or condensation)
Ambient temperature (Storage) : -25 to 75 ℃ (with no freezing or condensation)
Ambient humidity (Operating) : 25 to 85 %
Ambient humidity (Storage) : 25 to 90 %
Construction : Construction : Covered type
Connection : Terminal blocks
Terminal type : Screw terminal
Mounting : Front mounting
Cooling fan : Cooling fan Yes
Attachment : Front mounting Bracket
