Thông tin chi tiết về sản phẩm:

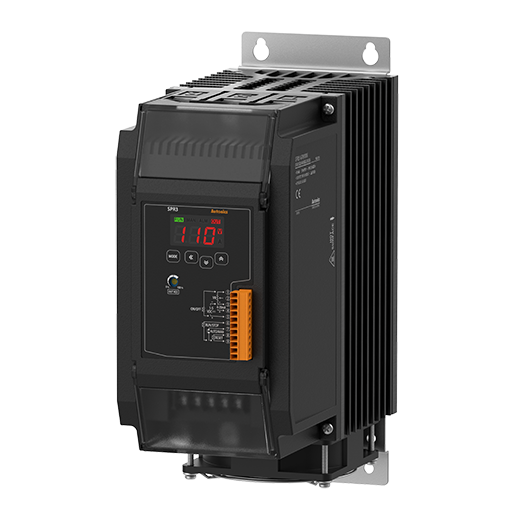

aut.vn Thyristor Autonics SPR3-370NNF
Control phase : 3-phase
Rated load voltage : 380VAC~
Rated load current : 70A
Control input : ᆞAuto control: DC4-20mA, 1-5VDC @(=), ON/OFF contact (no-voltage input), pulse voltage (5-12VDC @(=)) ᆞManual control: outside adjuster (10kΩ), inside adjuster (output limit)
Power supply : 100-240VAC~ 50/60Hz
Min. load current : 1A
Allowable voltage range : 90 to 110% of rated voltage
Power consumption : Max. 22VA
Display method : 3-digit 7-segment LED
Indicator : ᆞOperation indicator/Manual control indicator: green LED
ᆞAlarm indicator/output indicator/unit (V, A) indicator: red LED
Control method : ᆞPhase control: normal control mode
ᆞCycle control: fixed cycle control mode
ᆞON/OFF control
Applied load : ᆞPhase control, ON/OFF control: resistance load, inductive load
ᆞCycle control: resistance load
Digital inputs : RUN/STOP switching, AUTO/MANU switching, RESET
Output_Alarm : 250VAC~ 3A, 30VDC @(=) 3A, 1c resistive load
Output range : Phase control: 0 to 98%, Cycle control: 0 to 100%, ON/OFF control: 0 to 100%
Output accuracy : Normal control: within ±10% F.S. of rated load voltage
Setting type : By front keys, by communication
Function : Output limit (OUT ADJ), AUTO/MAN selection, control method selection, RESET, SOFT START, SOFT UP/DOWN, output high/low limit, input correction, input slope correction, monitoring (control input, load voltage/current/power/resistance, power supply frequenc
Function_Alarm : Overcurrent alarm, overvoltage alarm, fuse break alarm, SCR error alarm, heater break alarm, heatsink overheat alarm
Cooling method : Forced air cooling (with the cooling fan)
Insulation resistance : Over 200MΩ (at 500VDC megger)
Dielectric strength : 2,000VAC~ 50/60Hz for 1 min (between input terminals and power terminals)
Output leakage current : Max. 10mArms
Noise immunity : ±2kV the square wave noise (pulse width: 1㎲) by the noise simulator
Memory Protection : ≈ 10 years (non-volatile semiconductor memory type)
Vibration : 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
Vibration_Malfunction : 0.5mm amplitude at frequency of 5 to 55Hz in each X, Y, Z direction for 10 min
Environment_Ambient temperature : -10 to 55℃, storage: -20 to 80℃
Environment_Ambient humidity : 35 to 85% RH, storage: 35 to 85% RH
Accessories : 11-pin connector, isolating barrier: 4
Weight : Approx. 5kg(approx. 4.2kg)
