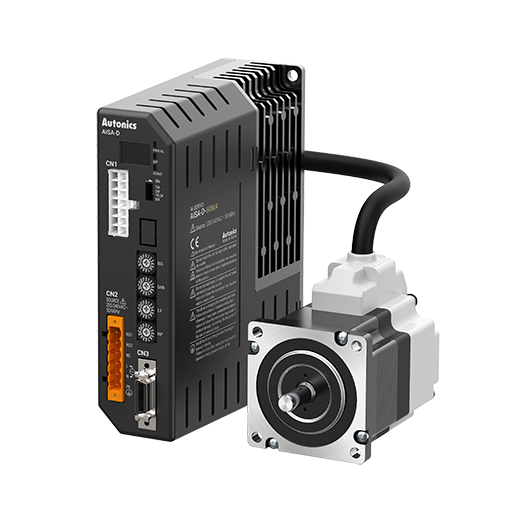

aut.vn Động cơ bước 2 pha vòng kính Autonics AiSA-60MA

aut.vn Động cơ bước 2 pha vòng kính Autonics AiSA-60MA

Driver_Operation Method : Bipolar constant current Drive
Driver_Applied Motor : Frame size 60mm 2-phase closed loop stepper motor
Driver_Resolution : 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
Driver_Power supply : 200-240VAC~
Driver_Max. Run Current : 2A/Phase



Mua Ngay : Zalo

nhà chế tạo: Autonics
khả dụng: 3 trong kho
SKU: AiSA-60MA
Ngày giao hàng: 1-3 days
Giá cũ: 10.224.108 ₫
9.698.150 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào
Chúng tôi có hơn 35.000 sản phẩm vì vậy hãy liên hệ với chúng tôi
Để được tư vấn và check tình trạng hàng bạn nhé!

AUTO TECH VN cam kết:
1. Hàng Chính Hãng Autonics Việt Nam.
2. Xuất được Hóa đơn VAT.
3. Cấp CO/CQ công chứng bởi Autonics Vina.
4. Giá cạnh tranh.
5. Sản phẩm bảo hành theo chính sách của hãng.

Thông tin chi tiết về sản phẩm:

aut.vn Động cơ bước 2 pha vòng kính Autonics AiSA-60MA
Driver_Operation Method : Bipolar constant current Drive
Driver_Applied Motor : Frame size 60mm 2-phase closed loop stepper motor
Driver_Resolution : 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
Driver_Power supply : 200-240VAC~
Driver_Max. Run Current : 2A/Phase
Driver_Output : In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
Driver_Protection structure : IP20
Driver_Approval : @(CE)
Motor_Basic Step Angle [FULL/HALF] : 1.8º/0.9º
Motor_Applied Driver : Frame size 60mm AC type 2-phase closed-loop stepper motor driver
Motor_Max. Holding Torque : 11.22kgf.cm
Motor_Rotor Moment Of Inertia : 240g·cm²
Motor_Winding Resistance : 1.5Ω
Motor_Rated Current : 2A/Phase
Motor_Motor length : 82.8mm
Motor_Shaft Type : Single shaft
Motor_Operation Method : Bipolar constant current Drive
Motor_Resolution : 10,000PPR(2,500PPR×4-multiply)
Motor_Output phase : A, @(A^), B, @(B^), Z, @(Z^)
Motor_Max. response frequency : 300kHz
Motor_Protection structure : IP30
Motor_Approval : @(CE)
Motor phase : 2-Phase
Driver_Environment_Ambient temperature : 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity : 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight : Approx. 900g (approx. 780g)
Motor_Environment_Ambient temperature : 0 to 50℃, storage: -20 to 70℃
Motor_Environment_Ambient humidity : 20 to 85%RH, storage: 15 to 90%RH
Motor_Weight : Approx. 0.95kg(approx. 0.75kg)
