Chúng tôi có hơn 35.000 sản phẩm vì vậy hãy liên hệ với chúng tôi
Để được tư vấn và check tình trạng hàng bạn nhé!

AUTO TECH VN cam kết:
1. Hàng Chính Hãng Autonics Việt Nam.
2. Xuất được Hóa đơn VAT.
3. Cấp CO/CQ công chứng bởi Autonics Vina.
4. Giá cạnh tranh.
5. Sản phẩm bảo hành theo chính sách của hãng.

Thông tin chi tiết về sản phẩm:

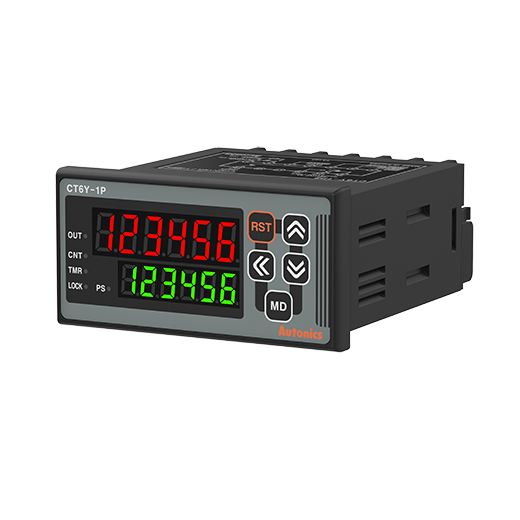

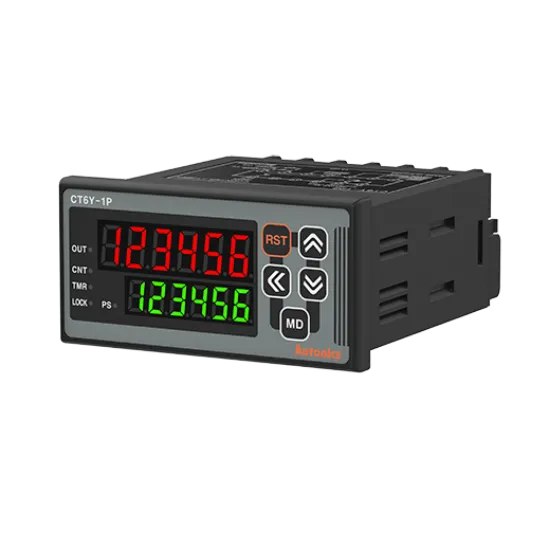

aut.vn Bộ đếm Autonics CT6Y-1P4
Display method : 6-digit 7-segment LED
Operation method : Counter: Count up, Count down, Count up/down
Timer: Count up, Count down
Terminal : Terminal block
Output Operation : SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
Power supply : 100-240VAC~ 50/60Hz
Time operation : POWER ON START
SIGNAL ON START
External Power Supply : Max. 12VDC @(=) ±10%, 100mA
Signal Input Method : Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed : 1, 30, 1k, 5k, 10k [cps]
Min. signal Width : 1ms/20ms
Memory Protection : Approx. 10 years
Setting range : 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
Control output_Type : 1-stage preset
Control output_Relay : SPDT (1c): 1
Control output_NPN open collector : 1
Protection structure : IP65(front panel)
Counter_Counting range : -99999 to 999999
Counter_Scale : Decimal point up to fifth digit
Counter_Min. input signal width : RESET: Selectable 1ms/20ms
Timer_Min. input signal width : INA, INH, RESET: Selectable 1ms/20ms
Environment_Ambient temperature : -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity : 35 to 85% RH, storage: 35 to 85% RH
Weight : Approx. 228g (approx. 140g)
