Thông tin chi tiết về sản phẩm:

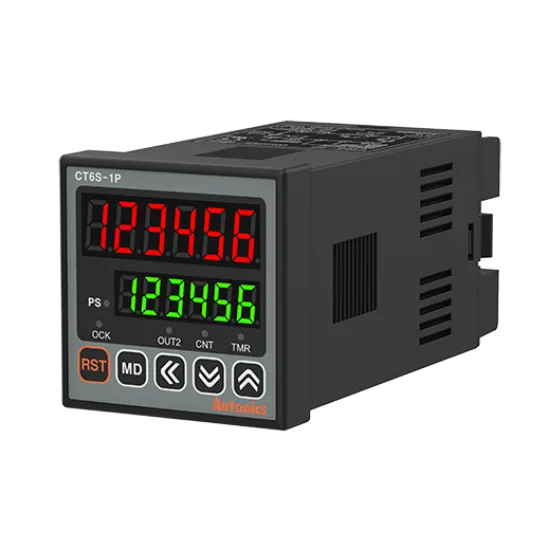

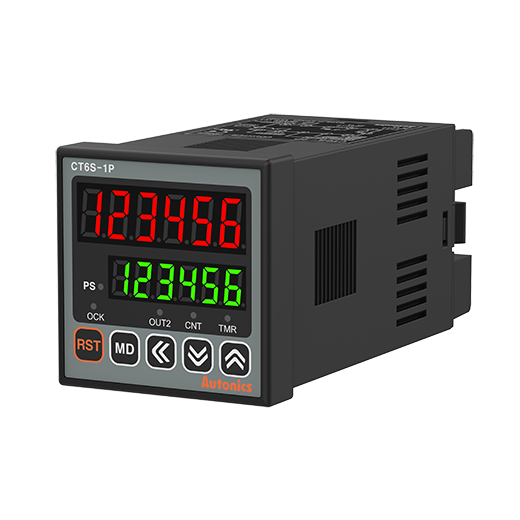

aut.vn Bộ đếm Autonics CT6S-1P4
Display method : 6-digit 7-segment LED
Operation method : Counter: Count up, Count down, Count up/down
Timer: Count up, Count down
Terminal : Terminal block
Output Operation : SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
Power supply : 100-240VAC~ 50/60Hz
Time operation : POWER ON START
SIGNAL ON START
External Power Supply : Max. 12VDC @(=) ±10%, 100mA
Signal Input Method : Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed : 1, 30, 1k, 5k, 10k [cps]
Min. signal Width : 1ms/20ms
Memory Protection : Approx. 10 years
Setting range : 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
Control output_Type : 1-stage preset
Control output_Relay : SPDT (1c): 1
Control output_NPN open collector : 1
Protection structure : IP65(front panel)
Counter_Counting range : -99999 to 999999
Counter_Scale : Decimal point up to fifth digit
Counter_Min. input signal width : RESET: Selectable 1ms/20ms
Timer_Min. input signal width : INA, INH, RESET: Selectable 1ms/20ms
Environment_Ambient temperature : -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity : 35 to 85% RH, storage: 35 to 85% RH
Weight : Approx. 212g (approx. 159g)
