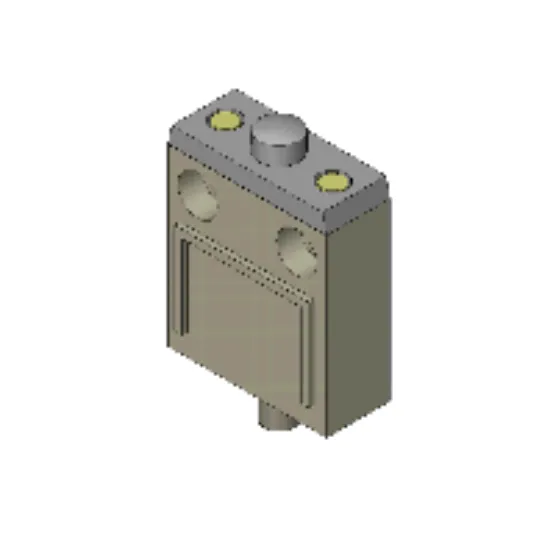

aut.vn Công tắc hành trình Limit Switch Omron D4C-3501

Shape/Structure : General-purpose Limit switches
Actuator : Pin plunger
Electrical ratings : 4 A at 30 VDC
Contact form : SPDT
Cable specifications : VCTF, 4 cores, 5 m
Degree of protection : IP67
Shape/Structure : General-purpose Limit switches
ctuator : Pin plunger 10 dia.
Stainless steel plunger
Electrical ratings : 4 A at 30 VDC
Contact form : SPDT
Load : General load
Ratings (DC): Non-Inductive load : Resistive load: 4 A at 30 VDC
Lamp load: 2 A at 30 VDC
Inductive load: 3 A at 30 VDC
Motor load: 3 A at 30 VDC
Inrush current : NC: 20 A max.
NO: 10 A max.
Indicator : LED, Light when not operating
30 VDC
Leakage current: Approx. 1.7 mA
Earth terminal : With earth wire
Cable specifications : VCTF, 4 cores, 5 m
Nominal sectional area: 0.75 mm2
Diameter: 7.6 dia.
Ambient temperature : Operating: -10 to 70 ℃ (with no icing)
Ambient humidity : 35 to 95 %
Permissible operating speed : 0.1 mm/s to 0.5 m/s
Permissible operating frequency : Electrical: 30 operations / 1 minute max.
Mechanical: 120 operations / 1 minute max.
Contact resistance (Initial value) : 400 mΩ max.
Insulation resistance : 100 MΩ min. (at 500 VDC)
Dielectric strength : Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 min
Between live-metallic part and ground: 1,500 VAC 50/60 Hz 1 min
Between each terminal and non-live-metallic part: 1,500 VAC 50/60 Hz 1 min
Impulse withstand voltage : Between live-metallic part and ground: 2.5 kV
Between each terminal and non-live-metallic part: 2.5 kV
Durability : Electrical: 200,000 operations min. (5 A at 125 VAC)
Mechanical: 10 million operations min.
Vibration resistance : Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Shock resistance : Destruction: 1,000 m/s2 max.
Malfunction: 500 m/s2 max.
Degree of protection : IP67
Classification of protection against electric shock : Class I (with earth wire)
Operating Force (OF) : Standard value 11.77 N max.
Release Force (RF) : Standard value 4.41 N min.
Pre-Travel (PT) : Standard value 1.8 mm max.
Movement Differential (MD) : Standard value 0.2 mm max.
Over-Travel (OT) : Standard value 3 mm min.
Operating Position (OP) : Standard value 15.7±1 mm
