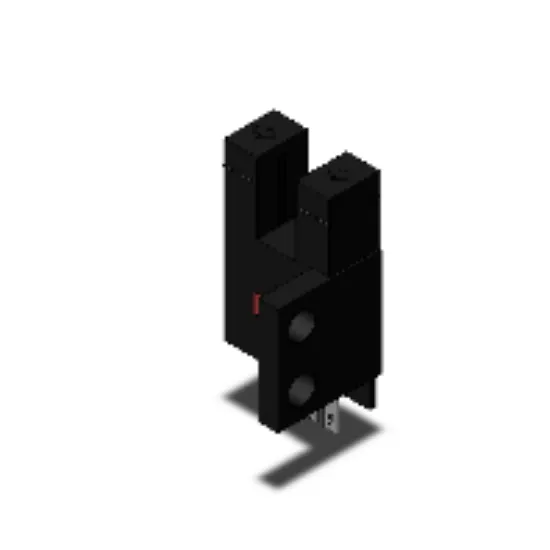

aut.vn Cảm biến quang điện siêu nhỏ Omron EE-SX677

Type : Grooved Type (R-shaped)
Luminous method : Non-modulated
Sensing method : Through-beam type
Sensing distance : Slot width: 5 mm
Control output (Output type) : NPN open collector output
Operation mode : Dark-ON/Light-ON (selectable)
Connection method : Connector type
Type : Grooved Type (R-shaped)
Luminous method : Non-modulated
Sensing method : Through-beam type
Sensing distance : Slot width: 5 mm
Operation mode : Dark-ON/Light-ON (selectable)
Standard sensing object : Opaque, 2 x 0.8 mm min.
Differential distance elements : 0.025 mm max.
Light source （Peak wavelength） : Infrared LED (940 nm)
Indicator : Light indicator (red)
Power supply voltage : 5 to 24 VDC ±10%
ripple (p-p) 10 % max.
Current consumption : 12 mA (L terminal open)
Control output : Output type : NPN open collector output
Load power supply voltage : 5 to 24 VDC
Load curren : 100 mA max.
Residual voltage : at 100 mA load current: 0.8 V max.
at 40 mA load current: 0.4 V max.
Protection circuits : Output short-cut protection
Response frequency elements : 1 kHz min.
Average value: 3 kHz
Illumination on the surface receiver : Fluorescent light: 1000 lx max.
Ambient temperature : Operating: -25 to 55 ℃ (with no freezing or condensation)
Storage: -30 to 80 ℃ (with no freezing or condensation)
Ambient humidity : Operating: 5 to 85 % (with no condensation)
Storage: 5 to 95 % (with no condensation)
Vibration resistance : Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods)
Shock resistance : Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection : IP50
Connection method : Connector type (Direct soldering possible)
Weight : Package: Approx. 2.2 g
Material : Case: Polybutylene terephthalate (PBT)
Emitter/Receiver Cover: Polycarbonate (PC)
