Các sản phẩm được gắn thẻ 'Cầu đấu dây'

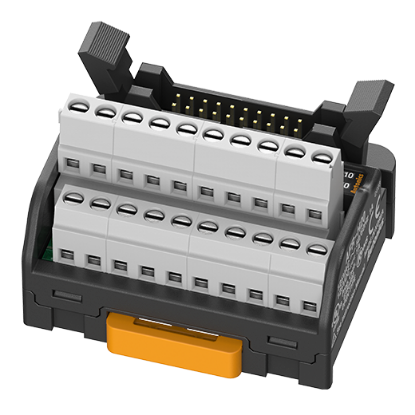

Cầu đấu dây Autonics AFR-H20-LP Number of terminal : 16 EA Terminal type : Rising Clamp Material : CASE: Polycarbonate, BASE: Polycarbonate Rated voltage : 24VDC @(=) ±10% Rated current : ≤1A Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃ Protection structure : IP20(IEC standard)

Cầu đấu dây Autonics ABS-S01TN-CN Rated voltage : 24VDC @(=) ±10% Rated load voltage & current : 250VAC~ 3A, 30VDC @(=) 3A Current consumption : ≤8.5mA Applied relay : NYP24W-K[TAKAMISAWA(Fujitsu)] Number of relay points : 1-point Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃ Material : CASE & BASE: PA6, TERMINAL PIN: Brass

Cầu đấu dây Autonics ABS-S04TN-CN Rated voltage : 24VDC @(=) ±10% Rated load voltage & current : 250VAC~ 3A, 30VDC @(=) 3A Current consumption : ≤8.5mA Applied relay : NYP24W-K[TAKAMISAWA(Fujitsu)] Number of relay points : 4-point Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃ Material : CASE & BASE: Modified Polyphenylene Oxide, TERMINAL PIN: Brass

Cầu đấu dây Autonics ASL-L04SP0-UN Rated voltage : 24VDC @(=) ±10% Rated load voltage & current : 75-240VAC~ 50/60Hz 1A Current consumption : ≤ 18mA Applied SSR : AQG12124(Panasonic) Terminal type : Screwless Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃ Protection structure : IP20(IEC standard)

Cầu đấu dây Autonics ABS-S01PQ-CN Rated voltage : 24VDC @(=) ±10% Rated load voltage & current : 250VAC~ 5A, 30VDC @(=) 5A Current consumption : ≤20mA Applied relay : PQ1a-24V [MATSUSHITA(Panasonic)] Number of relay points : 1-point Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃ Material : CASE & BASE: PA6, TERMINAL PIN: Brass

Cầu đấu dây Autonics ACS-B40T Number of terminal : 40 EA Terminal pitch : 7.2mm Material : Case, Base: PC, terminal: brass Weight : Approx. 149g(approx. 120g) Rated voltage : ≤125VDC @(=), 125VAC~ 50/60Hz Rated current : Max. 10A Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃

Cầu đấu dây Autonics ASL-L01SR0-PY Rated voltage : 24VDC @(=) ±10% Rated load voltage & current : 24-240VAC~ 50/60Hz 2A Current consumption : ≤ 18mA Applied SSR : G3MC-202P(Omron) Terminal type : Screwless Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃ Protection structure : IP20(IEC standard)

Cầu đấu dây Autonics ABS-S01R6-CN Rated voltage : 24VDC @(=) ±10% Rated load voltage & current : 250VAC~ 5A, 30VDC @(=) 5A Current consumption : ≤20mA Applied relay : G6B-1174P-FD-US[OMRON] Number of relay points : 1-point Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃ Material : CASE & BASE: PA6, TERMINAL PIN: Brass

Cầu đấu dây Autonics ASL-L01SR0-NN Rated voltage : 24VDC @(=) ±10% Rated load voltage & current : 24-240VAC~ 50/60Hz 2A Current consumption : ≤ 18mA Applied SSR : G3MC-202P(Omron) Terminal type : Screwless Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃ Protection structure : IP20(IEC standard)
